RGB Driver and Solutions (Smartphone control and programmable)

 HL5266A is a 3-channel LED driver with 8 bits device address identifier. There are 3 independent constant current LED drivers with 5 bits PWM color brilliance controllers. A common 8 bits PWM brightness controller is used to control the 3 LED drivers simultaneously. A serial data input port is used to receive control data for LED driver, and a serial data output port provides cascade serial data transformation. There is an oscillator resister built in HL5266A to reduce the number of external components. The power supply casade is allowed in series connection application.

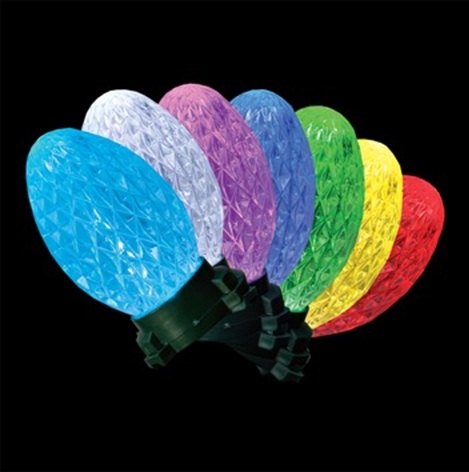

 With combining our Bluetooth modules, fruitful holiday lightng can be done with smart phone control.
