Bluetooth Module (Audio)
Title:Bluetooth Module (Audio) - MY85SPK02M2 Number:

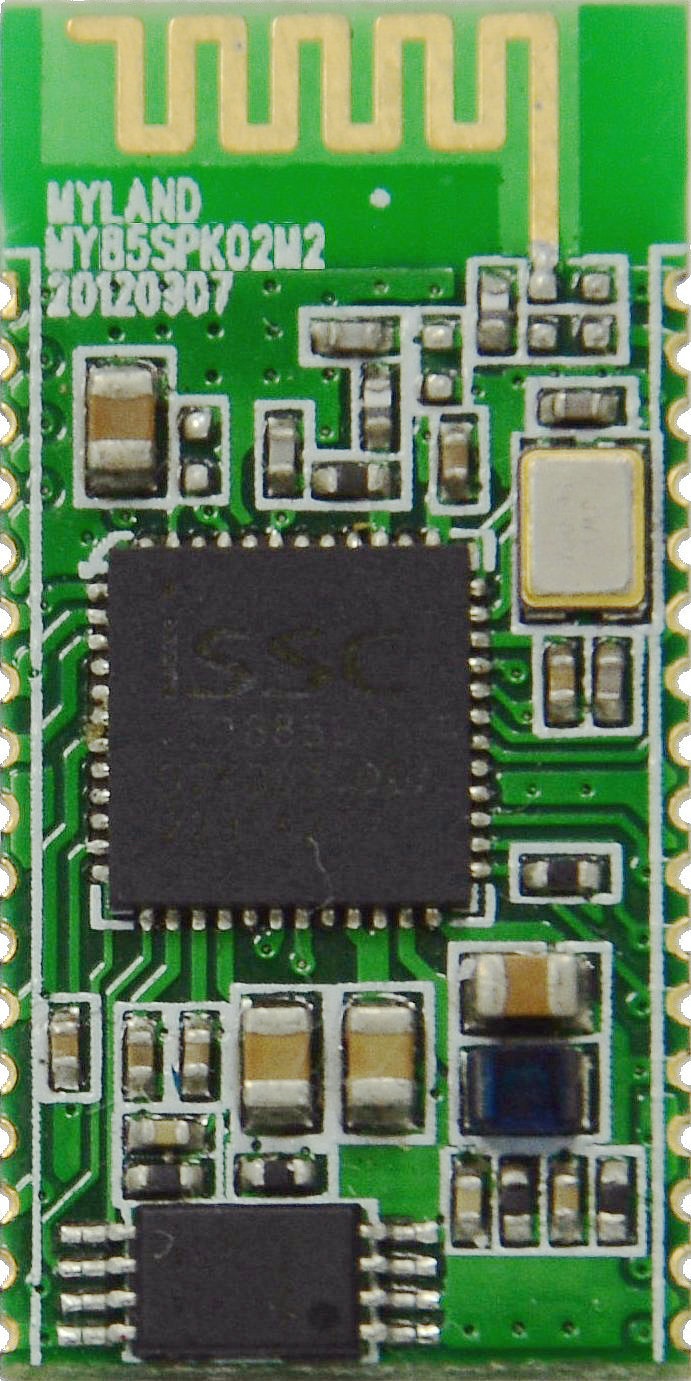

The MY85SPK02M2 Bluetooth module is designed using the ISSC IS1685S chip. The module is highly integrated, compact size, low power and high data rate. It requires very few external components to achieve high quality stereo audio streaming with remote control commands.
The MY85SPK02M2 provides remote control keys, operation status indication pins, stereo audio output, HCI UART interface and NFC detection interface.
Features:
1. Bluetooth 3.0+EDR compliant
2. Typical +2dBm Class 2 output power
3. Audio DAC: 94dB SNR
4. Build in Max. 250mAH Li-ion battery charging circuit
5. HSP, HFP, A2DP, AVRCP profile support
6. SBC decode for Bluetooth audio streaming
7. Voice prompt
8. Build in MIC circuit
9. AGC/AVC,AEC
10. HCI UART support
11. NFC support
12. EQ control
13. Size:13.5mm x 26.8mm
Application:
- High quality stereo headset
- High quality stereo speaker and HiFi
- High quality wireless stereo audio receiver
