Bluetooth Module (Audio)
Title：Bluetooth Module (Audio) - MY84SPK02M2 Number：

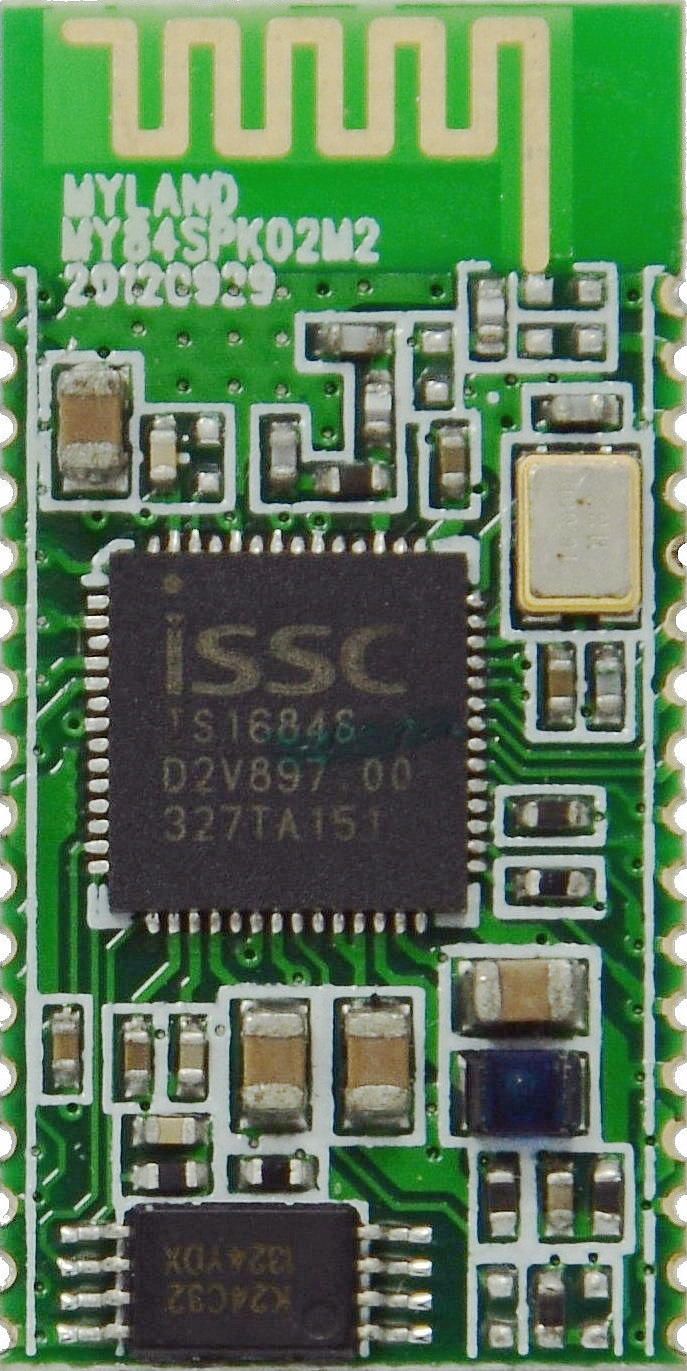

The MY84SPK02M2 Bluetooth module is designed using the ISSC IS1684S chip. The module is highly integrated, compact size, low power and high data rate. It requires very few external components to achieve high quality stereo audio streaming with remote control commands.
The MY84SPK02M2 provides remote control keys, operation status indication pins, stereo audio output, AUX input interface and NFC detection interface.
Features:
1. Bluetooth 3.0 + EDR compliant
2. Typical +2dBm Class 2 output power
3. Audio DAC: 94dB SNR
4. Build in Max. 250mAH Li-ion battery charging circuit
5. HSP, HFP, A2DP, AVRCP profile support
6. SBC decode for Bluetooth audio streaming
7. Voice prompt
8. Build in Line in interface
9. NFC support
10. EQ control
11. Size:13.5mm x 26.8mm
Application:
- High quality stereo speaker and HiFi
- High quality wireless stereo audio receiver
